Pre-March 1990 Production

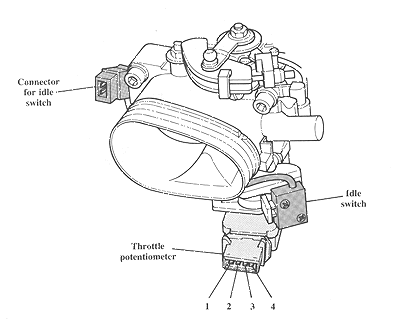

The early 1990 cars have a separate idle switch and throttle potentiometer, but the pot actually has an internal switch that acts just like the idle switch. The idle switch (and pins 3 & 4 of the throttle pot) should be closed about 1.5 degrees before the throttle plates close, and should be open at all other throttle positions. If you operate the throttle with your hand, you should be able to see the switch as it is activated when the throttle is closed. Use a multimeter to verify that the switch is closing properly and that resistance isn't too high (< 10 ohms) when it is closed. A replacement early-style switch is P/N 054 133 093 A.
The throttle pot is supplied 5 V to pin 4 by the ECU, the output back to the ECU is on pin 3, and pin 2 is ground. Here are some tests to perform on the throttle pot with a multimeter. Please note that the numbers in the following table correspond to the numbers in the picture above. There are numbers molded into the plastic connector that will be opposite from these.
Pin/Wire |
Pin/Wire |
Expected test results |
Connector 1 |
Connector 3 |
5 V (ignition on, measured at unplugged connector) |
Connector 1 |
Connector 2 |
5 V (ignition on, measured at unplugged connector) |
Throttle Pot 2 |
Throttle Pot 4 |
3000 to 6500 ohms (throttle closed, connector unplugged) |
Throttle Pot 2 |
Throttle Pot 3 |
3000 to 6000 ohms (throttle closed, connector unplugged) |
Throttle Pot 2 |
Throttle Pot 3 |
0 to 600 ohms (WOT, connector unplugged) |
3 |
2 |
Over 3 V down to 0 V as throttle goes from closed to fully
open (wiring connector plugged into throttle pot, ignition on) |
A replacement throttle potentiometer for the early 1990 cars is P/N 054 133 154 C.
Throttle Potentiometer Removal/Replacement
(Wylie Bean)
Post-March 1990 Production

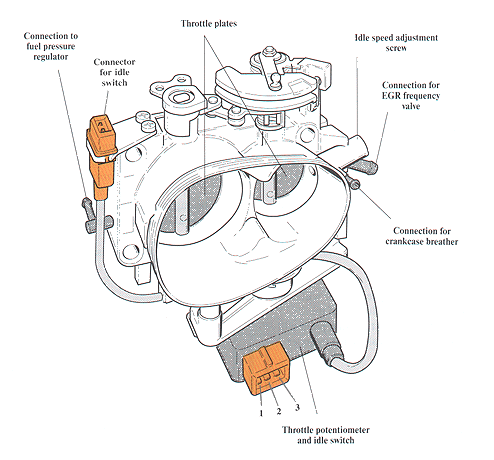

The late 1990 cars and all 1991 cars have a single unit that functions as both an idle switch and throttle potentiometer. The electrical connector is in roughly the same location, though. The tests are the same: the idle switch should close about 1.5 degrees before the throttle plates close, and the resistance shouldn't be too high (< 10 ohms) when closed.
The throttle pot is supplied 5 V to pin 1 by the ECU. The output can be measured across pins 3 (output signal) and 2 (ground). You should see 5 V with the throttle closed and a linear decrease as the throttle is opened until it reaches 0 V at WOT. Here are some tests to perform on the throttle pot with a multimeter:
Pin/Wire |
Pin/Wire |
Expected Test Results |
Connector 1 |
Connector 2 |
5 V +/- 0.5 V (ignition on, throttle closed) |
Connector 1 |
Connector 3 |
5 V +/- 0.5 V (ignition on, throttle closed) |
Throttle Pot 1 |
Throttle Pot 2 |
1500 to 2600 ohms (throttle closed) |
Throttle Pot 2 |
Throttle Pot 3 |
750 to 1300 ohms (throttle closed) |
Throttle Pot 2 |
Throttle Pot 3 |
<= 3600 ohms (WOT) |
3 |
2 |
5 V down to 0 V as throttle goes from closed to fully
open (wiring connector plugged into throttle pot, ignition on) |
A replacement throttle pot/idle switch for the later cars is P/N 051 133 154 A.
Replacement procedure should be similar to the above instructions, but the ISV is mounted directly to the intake hose so adjust step #2 as necessary.
